Product Description

The Goods Hoist is a robust and well engineered lift specifically designed to hoist heavy goods between two or more levels. It is ideal in factory, car dealer-ships, processing plants etc.

Special Features

• Special sizes and capacities can be made to suit client specifications.
• Imperforate sliding folding door
• Patent lattice door
• Barrel driven winding unit
• Accurately machined rope grooves
• Quiet Operation

General Operation

We manufacture from small dumbwaiters S.W.L 100 Kg to Industrial Goods Hoists S.W.L 20 000 Kg
We will manufacture to suit any special sizes or applications. Structural steel towers are also available.

Installations

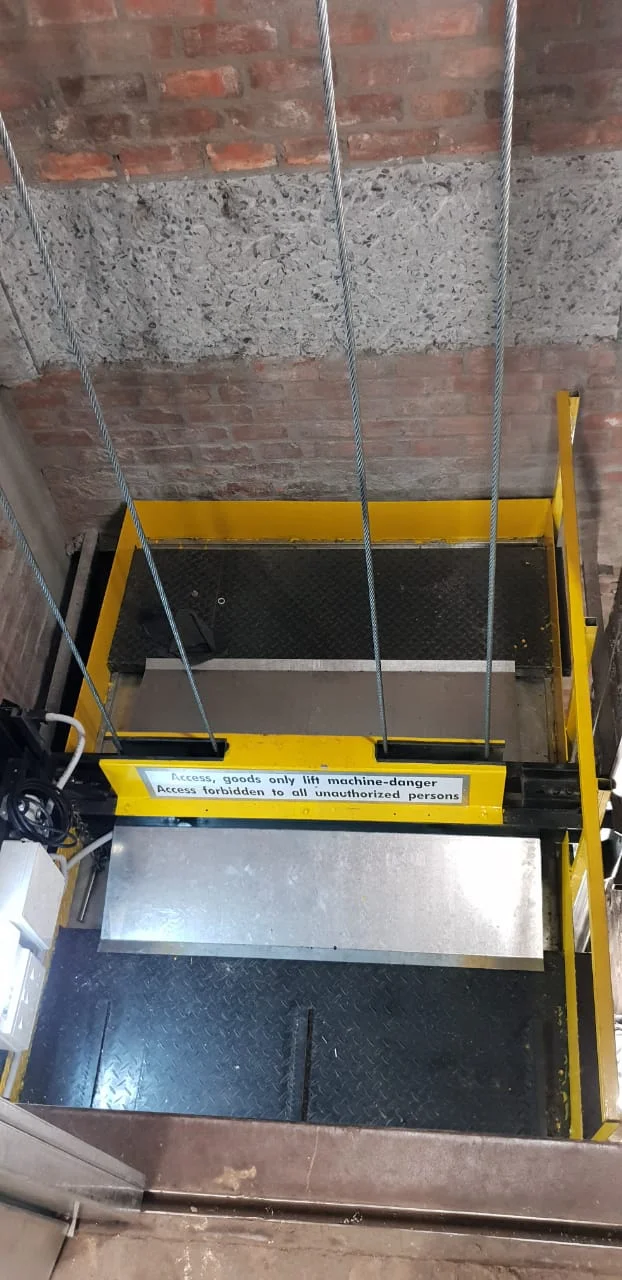

• Due to the fact that the lifting machine is of modest dimensions and may be located in any convenient position adjacent to, or remote from the lift shaft at any level, expensive building modifications are avoided, particularly in existing buildings.
• Special sizes to suit existing building constraints are easily catered for.
• Car entrances may be arranged on any or all of three sides.

Product Benefits

• Low Cost
• Locally Manufactured
• Spares available 24hours / day
• Maintenance Contract
• Manufactured as per clients specifications
• Low voltage control

Landing Entrance Options

• All landing entrances are supplied complete with precision electromechanical door locks to ensure compliance.
• Mid bar picket gate.

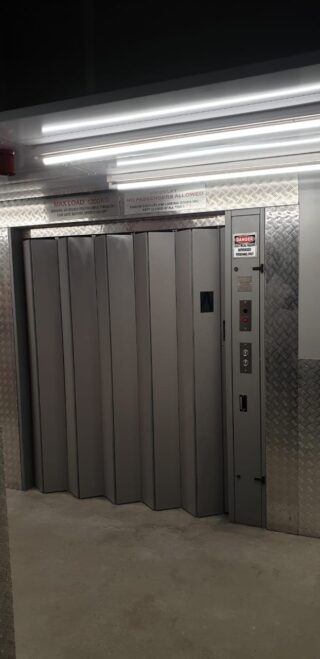

• Galvanized sheet steel concertina door – suitable where class “C” fire door assemblies are required.
• Timber or swing steel doors.
• Industrial roller doors

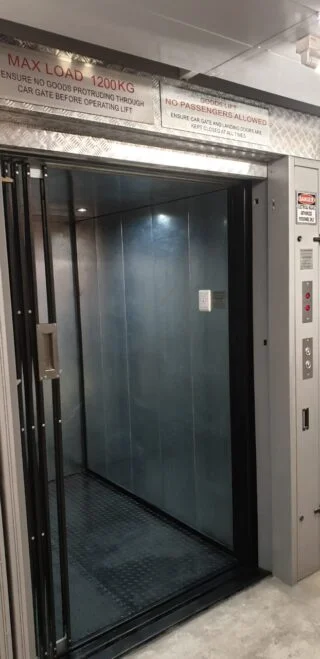

Cab Options

• Renewable heavy-duty timber block board
• Sheet steel panels
• Stainless steel panels
• Galvanized sheet steel panels
• Replaceable wooden buffer rails
• Stainless steel

Floor Options

• Timber – heavy duty block board
• Heavy duty steel chequer plate
• Any standard range of floor coverings

Safety Devices

All units are equipped with instantaneous safety devices as a standard feature.
Hand winding can be effected in the event of power failure

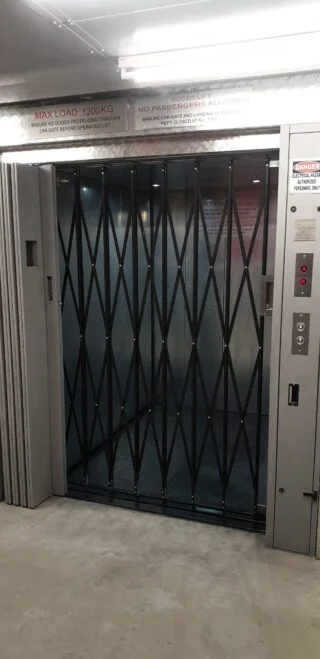

Car Gate Options

• All complete with electrical interlocks
• Steel picket
• Galvanized steel picket
• Safety bar
• Galvanized concertina door
• Counter weight type car door

Optional Extras

• Car arrive bell
• Gate open bell
• Mild steel or stainless steel walls and roof
• Class C fire rated landing doors
• Transistorised intercom
• Electrical key switches (for security)

Recommendations

As the regulations have been revised and upgraded (see Sans 1545-5), we recommend that all old lifts be modernised to comply and meet today’s standards of safety.

BRI-TON LIFTMASTER CC offers maintenance programmes to ensure the continued and safe operation of your lift.

We manufacture from small dumbwaiters S.W.L 100 Kg to Industrial Goods Hoists with a safe working load of 10 000 Kg.

BRI-TON LIFTMASTER Goods Hoists is a robust and well engineered lift specifically designed to hoist heavy goods between two or more levels.

As the regulations have been revised and upgraded, we recommend that all old lifts and goods hoists be modernized to comply and meet today’s standards of safety AS PER SANS. All Goods Hoists need to be serviced and inspected either Monthly or 3 Monthly depending on it work load and duty cycle.

Contact our office today, so we can assist you with the process to register and upgrade your existing Goods Hoists.

IMPORTANT NEWS REGARDING EXISTING GOODS HOIST’S YOU ONLY HAVE UNTIL 2020.

Goods lift now included in the Lift, Escalator and Passenger Conveyor Regulations.

Occupational Health and Safety Act

• Lift, Escalator and Passenger Conveyor Regulations, 2010 – Incorporation of Code of Practice for Existing Goods Hoists Installations

This “Code of Practice for Existing Goods Hoists Installations” (installed prior to 30 September 2015) was incorporated on 3 February 2017 into the Lift, Escalator and Passenger Conveyor Regulations, 2010. Previously existing goods hoist installations were regulated under the Driven Machinery Regulations from 1988. These Regulations were repealed by the 2015 Driven Machinery Regulations, and Reg. 23(2) thereof states that goods hoist must, within five years, comply with the provisions of the Lift, Escalator and Passenger Conveyor Regulations, 2010.

This Code now regulates existing goods hoist installation, meaning that they have to satisfy the requirements of the Lift, Escalator and Passenger Conveyor Regulations. This includes the registration of all units with the regional office of the Department of Labour, regular servicing/maintenance etc., record keeping and so on.
